Friday, March 25, 2016

What is the use of Rank Indication in LTE

The eNodeB configures the RI reporting periodicity for every UE during the attach procedure and UE has to honour it. The RI reporting periodicity can overlap with CQI reporting periodicity in which case the UE will drop CQI and report RI.

Now coming to the RI itself, the contents of RI is just a couple of bits. The number depends on antenna configuration. If the eNodeB is configured with 2 transmit antennas on downlink then the number of bits reported in RI will be one and if its 4 then number of RI bits will be 2.

Lets consider the two antenna case where RI is indicated using one bit, so a bit 0 indicates RANK1 and a bit 1 indicates RANK2. RANK1 means the UE is seeing a good SINR only on one of its receive antenna so asking the eNodeB to bring down the transmission mode to single antenna or transmit diversity. A RANK2 from the UE means good SINR on both the antenna ports and eNodeB can schedule MIMO.

Its very essential for the eNodeB to decode a UEs RI report to know the channel conditions so that it can schedule downlink appropriately. The LTE specifications also say that if the UE is not reporting any RI then the eNodeB should assume RANK1.


Reference:https://ltebasics.wordpress.com/2014/09/21/use-of-rank-indication-in-lte/

Wednesday, March 23, 2016

Basic LTE call flow


LTE terminal must perform certain steps before it can receive or transmit data. These steps can be categorized in cell search and cell selection, derivation of system information, and random access. The complete procedure is known as LTE Initial Access



Successful execution of the cell search and selection procedure as well as acquiring initial system information is essential for the UE before taking further steps to communicate with the network. For this reason, it is important to take a closer look at this fundamental physical layer procedure.

but I strongly recommend you to try to have some big picture of the whole process. Whenever you have some issues or something for you to work, try to ask your self "Where is the current issue located in the whole picture ?".


Step A: Initial synchronization:
Step A-1: Primary Synchronization Signal
The UE first looks for the primary synchronization signal (PSS) which is transmitted in the last OFDM symbol of the first time slot of the first subframe (subframe 0) in a radio frame. This enables the UE to acquire the slot boundary independently from the chosen cyclic prefix selected for this cell. Based on the downlink frame structure (Type 1, FDD), which is shown in Figure 6, the primary synchronization signal is transmitted twice per radio frame, so it is repeated in subframe 5 (in time slot 11). This enables the UE to get time synchronized on a 5 ms basis, which was selected to simplify the required inter-frequency and inter-RAT measurements.

Query_1: How does UE know to look for the PSS synchronization signal?
Well, UE doesn't need to worry much for this. As, the synchronization signal are always sent only on the center 62 sub carriers irrespective of the  channel bandwidth (1.25,3,5,10,20). Therefore, UE will look for the central sub carriers, i.e at the last OFDM symbol of the 1st time slot and again at the last OFDM symbol of the 11th slot. With this UE synchronizes at the slot level.

Step A-2: Secondary Synchronization Signal
After the mobile has found the 5 ms timing, the second step is to obtain the radio frame timing and the cells’ group identity. This information can be found from the SSS. In the xtime domain, the SSS is transmitted in the symbol before the PSS . The SSS also has 5 ms periodicity, which means it is transmitted in the first and sixth subframes (subframes 0 and 5).


Query_2: How does UE know to look for the SSS synchronization signal?
Once, when the PSS is identified, SSS is always send at the slot before the PSS is present. In other words, SSS immediately precedes the PSS.

Let's see how the UE derives the Cell ID using these two signals:
From PSS: PHYSICAL LAYER CELL IDENTITY is derived. It carries the value of 0, 1 and 2.
From SSS: PHYSICAL LAYER CELL IDENTITY GROUP is derived. It can take the value to 0 to 167.

Formula:
Cell ID= (3*PHYSICAL LAYER CELL IDENTITY GROUP) + PHYSICAL LAYER CELL IDENTITY

Step A-3: Downlink Reference Signal
The UE is thus able to become fully synchronized with the radio cell because the reference signals are transmitted in well-defined resource elements. In every sixth subcarrier in the frequency domain a reference symbol from the generated reference signal pattern is transmitted. In the time domain, every fourth OFDM symbol transmits a reference symbol . A resource block contains four reference symbols.


Step B: Broadcast of essential system information
Step B-4: Master information block
From the MIB, UE gets the following information:
  • Channel bandwidth in terms of Resource Blocks
  • SFN (System Frame Number)
  • PHICH configuration (used for HARQ ACK/NACK)
Query_3: How does the UE read MIB?
  • The MIB is transmitted on physical channel (BCCH-BCH-PBCH) and it always occupies the central 72 sub carriers in the Frequency domain irrespective of the channel bandwidth.
  • The first transmission of the MIB is scheduled in sub-frame number 0 of radio frames for which the SFN mod 4 = 0
  • repetitions are scheduled in sub-frame 0 of all other radio frames
Step B-5:  SiB1
i) Cell Access Related Information - PLMN Identity List, PLMN Identity, TA Code, Cell identity & Cell Status
ii) Cell Selection Information - Minimum Receiver Level
iii) Scheduling Information - SI message type & Periodicity, SIB mapping Info, SI Window length

Step B-6:SiB2
i) Access Barring Information - Access Probability factor, Access Class Baring List, Access Class Baring Time
ii) Semi static Common Channel Configuration - Random Access Parameter, PRACH Configuration
iii) UL frequency Information - UL EARFCN, UL Bandwidth, additional emmission


After the above process the UE is synchronized with the network in the Downlink direction and have read SIB1 and SIB 2. Now, it needs to synchronize in the Uplink direction.
The UE cannot start utilizing the services of the network immediately after downlink synchronization unless it is synchronized in the uplink direction too.
Now, RAP (Random Access Procedure) is initiated

There are two types of RAP:
  • Contention based RAP
  • Non-contention based RAP

Typical 'Contention Based' RACH Procedure is as follows :

i) UE --> NW : RACH Preamble (RA-RNTI, indication for L2/L3 message size)
ii) UE <-- NW : Random Access Response (Timing Advance, T_C-RNTI, UL grant for L2/L3 message)
iii) UE --> NW : L2/L3 message
iv) Message for early contention resolution

Typical 'Contention Free' RACH Procedure is as follows :

i) UE <--NW : RACH Preamble Assignment
ii) UE --> NW : RACH Preamble (RA-RNTI, indication for L2/L3 message size)
iii) UE <--NW : Random Access Response (Timing Advance, C-RNTI, UL grant for L2/L3 message)


Contention based RAP
In contention based, multiple UE's attempt to connect to the network at the same time. The eNB is intelligent enough to tackle this situation because every UE should be unique to the network.

The UE's can always send the same Preamble ID to the network, thereby resulting on collisions. This kind of collision is called "Contention" and is known as "Contention based" RACH Process. The network would go through additional process to resolve these contention and hence this process is called "Contention Resolution" step.



Step 1: In the first message the UE provides an indication to the network about it's resource requirement. This carries the Preamble ID, RA-RNTI

Query_4: How does UE gets or selects these parameters:
a. Most of the information is passed on to the UE through SIB2 (click here, to know more about SIB2 parameters)
    i. UE MAC layer has to select the Preamble sequence (Group A or Group B)
    ii. UE will configure itself with the max retires it will try for sending RAP (if it doesn't receive RAR)
   iii. Also, after every retry, how much power level has to be increased for transmitting the RAP
   iv. UE MAC layer constructs the RAP message and passes it to the UE PHY layer. UE PHY layer will transmit this message through PRACH
   v. Once the UE has transmiited the RAP on PRACH, it will start looking for RAR immediately after 3 sub-frames. This number i.e. 3 sub-frame is specified by 3GPP.

Query_5: How long should UE monitor the frames for RAR?
This sub-frame number is again specified in SIB2 and is known as window length; so, after the 3 sub-frames as mentioned above, UE will start looking for RAR in the sub-frames as mentioned by the Window length. If by that time UE doesn't receive RAR, it will go back to transmit RAP

Step 2. The eNB conveys the resources reserved for this UE along with the Timing Advance (TA), Preamble ID and T-CRNTI (a number generated by eNB and asks the UE to send the RRC connection)
Step 3. UE sends the RRC connection Request using resources given by the eNB. It also sends the identifier (CRI) to the eNB which is used to resolve the Contention.
Step 4. The eNB runs an algorithm and generates C-RNTI which will be a permanent ID for the UE till the connection is alive. The eNB sends the UE identifier. In this step, the UE which has received the ID continues while other UE's will back off and try again.


Scenario:
Multiple UE's attempt to access the network:

1. So, the UEs initiates RACH with same Preamble sequence, RA-RNTI
2. Therefore, the UEs will receive the same T-C-RNTI and resource allocation from eNB
3. All UEs would send msg 3 (RRCconnectionRequest)  message through the same resource allocation to the Network
4. Once, when msg3 is transmitted, two Timers are started:
a. T300 : Transmission of RRCconnectionRequest
b. Contention Resolution Timer: broadcasted in SIB2. If the UE doesn't receive msg4 (Contention Resolution message) within this timer, then it go back to Step 1 i.e. transmitting RAP. If there is a HARQ NACK for msg3 (RRCconnectionRequest) and it has to be re-transmitted then this Contention Resolution Timer will be re-started

Query_6: Now the big question: How should the eNB behave?
1. One: The signals act as interference to each other and eNB decode neither of them. In this case, none of the UE would have any response (HARQ ACK) from eNB and all UE will go back to Step 1.
2. Second: The eNB would successfully decode the message from only one UE and fail to decode from others. The decoded UE will get HARQ ACK from eNB
3. Third: eNB receives msg3 (RRCconnectionRequest) from both the UE's. Here, eNB will send msg4 (Contention Resolution) with MAC CRI (Contention Resolution Identity) to both the UE's. This CRI will carry a reflection of the RRCconnectionRequest as generated by one of the UE. The MAC layer of the UE will match the CRI (as received from msg4) with the CRI embedded in the RRCconnectionRequest. If it matches, then the UE will proceed to decode RRCconnectionSetup and the other UE's will back off and return to Step1, i.e start the RA procedure again.

Contention Resolution process is again of two types:
1. MAC based Contention Resolution
=> C-RNTI on PDCCH
=> uses the DCCH logical channel
=> used in HO scenarios
==>The rule is: if the UE has a valid C-RNTI and is going for RA procedure then it will be a MAC based Contention Resolution procedure

2. L1 based Contention Resolution
=> CRI (Contention Resolution Identity) on DL-SCH based
=> Contention Resolution is addressed to T-CRNTI
=> uses CCCH logical channel
==>The rule is: if the UE doesn't has a valid C-RNTI and is going for RA procedure then it will be L1 based Contention Resolution procedure

Query_6: Exactly when and Where a UE transmit RACH ?
you need to refer to 3GPP specification TS36.211 - Table 5.7.1-2.
Did you open the specification now ? It shows exactly when a UE is supposed to send RACH depending on a parameter called "PRACH Configuration Index".

For example, if the UE is using "PRACH Configuration Idex 0", it should transmit the RACH only in EVEN number SFN(System Frame Number). Is this good enough answer ? Does this mean that this UE can transmit the RACH in any time within the specified the SFN ? The answer to this question is in "Sub Frame Number" colulmn of the table. It says "1" for "PRACH Configuration Idex 0". It means the UE is allowed to transmit RACH only at sub frame number 1 of every even SFN.

Query_7: How does Network knows exactly when UE will transmit the RACH ?
It is simple. Network knows when UE will send the RACH even before UE sends it because Network tells UE when the UE is supposed to transmit the RACH. (If UE fails to decode properly the network information about the RACH, Network will fail to detect it even though UE sends RACH).
Following section will describe network informaton on RACH.
Which RRC Message contains RACH Configuration ?
It is in SIB2 and you can find the details in 3GPP 36.331.

Query_8:Exactly when and where Network transmit RACH Response
 We all knows that Network should transmit RACH Response after it recieved RACH Preamble from UE, but do we know exactly when, in exactly which subframe, the network should transmit the RACH Response ? The following is what 3GPP 36.321 (section 5.1.4) describes.
 Once the Random Access Preamble is transmitted and regardless of the possible occurrence of a measurement gap, the UE shall monitor the PDCCH for Random Access Response(s) identified by the RA-RNTI defined below, in the RA Response window which starts at the subframe that contains the end of the preamble transmission [7] plus three subframes and has length ra-ResponseWindowSize subframes.
 It means the earliest time when the network can transmit the RACH response is 3 subframe later from the end of RACH Preamble. Then what is the latest time when the network can transmit it ? It is determined by ra-ResponseWindowSize. This window size can be the number between 0 and 10 in the unit of subframes. This means that the maximum time difference between the end of RACH preamble and RACH Response is only 12 subframes (12 ms) which is pretty tight timing requirement.

Query_9: Why/when UE send another PRACH? / When/How soon do I have to send the next PRACH?
Backoff Indicator provide the answer to this question.
Backoff Indicator is a special MAC subheader that carries the parameter indicating the time delay between a PRACH and the next PRACH. (As per 36.321). For example, if the BI field value is 10, Backoff Parameter value is 320 ms. This means UE can send PRACH any time in between 0 and 320 ms from now.
you would notice that BI (Backoff Indicator) field is made up of 4 bits, implying that it can carry the value from 0~15.

BI subheader should always be at the beginning of the whole MAC header. If you see more carefully, you would notice that BI subheader is shown with 'dotted' rectangle. It means that this is optional, implying that the network send or does not send BI depending on the situation.
If you see even more carefully, you would notice that BI subheader does not have any corresponding payload part. It means "Backoff Indicator" information is carried directly by the MAC header/subheader and it doesn't use any payload field.

Reference:http://lteexpert.blogspot.com/2014/09/basic-lte-call-flow.html?m=1

Monday, February 8, 2016

How the UE goes out of sync in LTE?

The full procedure for determining if the link has failed due to being out of sync is shown in the figure below. There are 3 main parameters/timers involved:

n310: This parameter indicates the number of 200 ms intervals when the UE is unable to successfully decode the PDCCH due to low RSRP detected. That is, this parameter indicates the number of times in which the UE cannot successfully decode 20 consecutive frames in the downlink.

t310: It is a timer, in seconds, used to allow the UE to get back in synchronization with the eNodeB.

n311: This parameter indicates the number of 100 ms intervals that the UE must successfully decode the PDCCH to be back in-synch with the eNodeB. That is, this parameter indicates the number of times in which the UE must successfully decode 10 consecutive frames in the downlink in order for the UE to assume the radio link is in-synch.

If the UE detects n310 consecutive out-of-sync indications, it starts the t310 timer. If the timer expires, the link has failed. If the UE detects n311 consecutive in-sync indications prior to the t310 timer expiring, then the timer is stopped and the link has will not fail.

Friday, February 5, 2016

RACH Preamble and Root Sequence Planning

The total number of RACH preambles available in LTE is 64. These preambles are shared among users for initial access and handover. Access to LTE systems can be classified based on the reservation or not of preambles for access. When users have a reserved signature to access the system, they are said to be using Contention Free Random Access (CFRA). On the contrary, when users don't have a reserved signature for access they are said to use Contention Based Random Access. CFRA is typically used during handover and  at the arrival of DL data.

The 64 preambles are not implicitly communicated to the UEs by the eNodeB but rather, the UE is informed about the process of how to generate them via parameters broadcast in SIB2. These parameters are:
a)     RootConfigurationIndex
In LTE, there are 838 root Zadoff-Chu sequences available for preambles. The length of each root sequence is 839. RootConfigurationIndex, informs the UE via SIB2 which sequence is to be used.
b)    ZeroCorrelationZoneConfig.
One root sequence can generate several preambles by cyclic shift. One or more root sequences are needed to generate all preambles in a cell. The UE starts with the broadcasted root index and applies cyclic shifts to generate preambles. ZeroCorrelationZoneConfig points to a table where the cyclic shift is obtained from.
The smaller the cyclic shift, the more preambles can be generated from a root sequence. Hence, the number of sequences needed to generate the 64 preambles in a given cell is:
                        # of rows = ceiling (64 / (integer (sequence length/cyclic shift)))
For example, if the rootsequence index is 300 and the cyclic shift is 119, then, the number of rows needed to generate the 64 preambles in a cell is:
# of rows = ceiling(64 /(integer(839/119))) = 10
This means, that if we allocated rootsequenceindex 300 to cell X, then cell Y must have rootsequenceindex 310 and cell Z must have rootsequenceindex 320 to avoid root sequence conflict which might affect the RACH success rate of the cell.
Below is the mapping between NCS & Cell radius



Reference:http://lteuniversity.com/get_trained/expert_opinion1/b/lauroortigoza/archive/2011/10/20/rach-preamble-planning.aspx

Friday, December 4, 2015

System Frame Number (SFN) and Subframe Number

SFN and Subframe

In any communication, one of the most important requirement would be that the transmitter and receiver operate at the same tempo, more technically speaking that the transmitter and receiver should operates in synchronized mode.

Speaking in laymen's terminology, the transmitter and receiver has it's own clock and they have to synchronize the clock before the communication starts.

What kind of clock they have in LTE ? Like our analog wrist clock, LTE clock has two arms. One arm ticks every 10 ms and the other arm ticks every 1 ms. Again as in the wrist clock, each of ticks has specific numbers and the numbers has a certain range.

In LTE, the arm ticking in 10 ms interval has numbers between 0 and 1023 and these numbers are called SFN (System Frame Number) and the other arm ticking in 1 ms interval has numbers between 0 and 9, and this number is called subframe number.

Before the transmitter (eNode B) and the receiver (UE) in LTE start communicating each of other they have to set these two clock arms to be the same number and this synchronization happens during cell search and timing sync process. In short, they synchronize the tempo (exact time the arm ticks) by cell search and timing sync and UE get SFN sync from MIB which carries SFN number in it.

Friday, October 16, 2015

What is radio retransmission in LTE?

  • The radio retransmission mechanism is called Hybrid Automatic Request (H-ARQ).
  • H-ARQ allows to retransmit fastly erroneous blocks between the eNodeB and the UE.
  • It avoids long retransmission between 2 TCP layers.
The H-ARQ process runs in the eNodeB and in the UE.
The H-ARQ is based on ACK/NACK messages carried by PUCCH or PUSCH.
The LA1.X implementation is a hard HARQ technique:
  • It reserves the same RB resources & MCS used for the initial transmission.
  • Using information that was sent in the previous transmissions of the same block to increase the probability of decoding.
  • If data block not received correctly, soft values are stored in order to reuse them after the retransmission of the block.
  • When data is retransmitted, a different puncturing scheme is used so that the transmitted bit do not carry the same information as the first time.
  • If puncturing schemes are disjoint between two transmission, number of coded bits transmitted after the second transmission is twice as high, thus coding rate has been divided by 2. After the third transmission, coding rate has been divided by 3. Probability to decode the block is increased after each transmission.

Saturday, October 10, 2015

Detach Cases in LTE

 1) Detach Case 1: UE-initiated Detach

UE can initiate detach:

  • if UE is turned off
  • if a USIM card is removed from UE
  • if UE is attempting to use a non-EPS service (e.g. CS fallback, SMS, etc.)

2) Detach Case 2: MME-initiated Detach

MME-initiated detach can be further divided into explicit detach and implicit detach. In case of explicit detach, MME notifies UE of its intent to detach in advance by sending a Detach Request message, and informs the UE whether it has to attach the network again or not after detach. In case of implicit detach, however, the MME initiates detach procedures without notification (i.e. without sending a Detach Request message) because the UE is not capable of communicating with the MME. MME can initiate:



i) Explicit Detach

  • for an operator’s O&M (Operation & Maintenance) purposes
  • if re-authentication fails
  • if it cannot provide the resources allocated to a user

ii) Implicit Detach

  • if it is not able to communicate with a user because of poor radio link quality (e.g. radio link failure)

3) Detach Case 3: HSS-initiated Detach

HSS can initiate detach:

  • if the user profile provisioned in HSS is changed, and thus the one saved in MME also has to be changed
  • if an operator is trying to restrict access by an illegal UE (e.g. a stolen device) to its network

The next three chapters (III, IV and V) describe different detach procedures required in the three detach cases mentioned above. In all three cases, it is assumed a user is in EMM-Registered, ECM-Connected and RRC-Connected state before detach, and services are provided through the default EPS bearer only. Figure 1 illustrates what connections are established, and in what state UE and MME are in user/control planes before and after detach. Before detach, a default EPS bearer and its related control connections are established, and the user is in EMM-Registered, ECM-Connected and RRC-Connected. Then, after detach, the default EPS bearer and all the signaling connections are released, and the user enters EMM-Deregistered, ECM-Idle and RRC-Idle state.





Figure 1. Connections and States before/after Detach



III. UE-initiated Detach

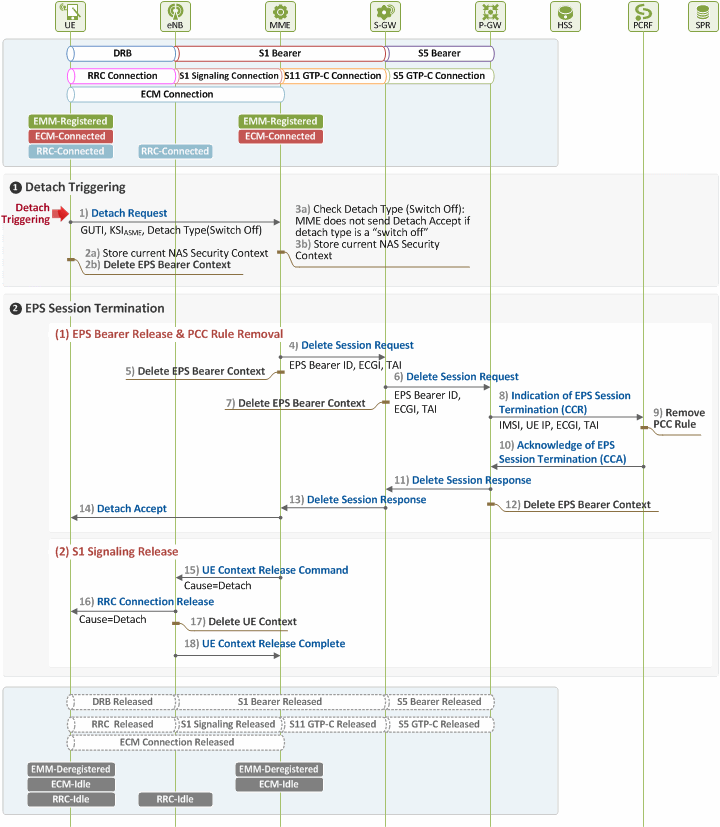

Figure 2 shows how user-initiated detach is performed. The detach procedure for this type of detach begins when detach triggering is detected at UE (see Chapter II), and thus the UE sends a Detach Request message. The procedure ends when the UE receives a Detach Accept message from MME, unless the UE is turned off by the user.





Figure 2. Procedure for UE-initiated Detach



 Detach Triggering by UE

When detach triggering is detected at UE, and thus the UE and MME become aware of it, the two entities will begin the following procedures:



1) [UE → MME] Detach Request

The UE requests the MME for detach by sending a Detach Request message to the MME. Interpretation of the Detach Request message parameters varies depending on which direction the message is delivered. If it is from UE to MME, the message parameters will be as follows:




2) [UE] Handling Security and Bearer Contexts

After sending the Detach Request message, the UE stores its current NAS security context, GUTI and TA information, and then deletes its EPS bearer context.



3) [MME] Noticing Detach Intent and Handling Security Context

After receiving the Detach Request message from the UE, the MME becomes aware of the UE’s intent to detach. It then stores the user’s current NAS security context, and checks the type of the intended detach, i.e. whether it is a case of normal detach, or a turned off device. By doing this, the MME finds out whether it has to send a Detach Accept message or not.



❷ EPS Session Termination

Once the MME perceived UE-initiated detach and stored the user’s current NAS security context, it requests for termination of the activated EPS session. This request triggers PCEF (P-GW)-initiated EPS termination, releasing all the network/radio resources allocated to the user, as to be described below.



(1) EPS Bearer Release and PCC Rule Removal



4) [MME → S-GW] Requesting EPS Session Release

The MME and the S-GW communicate with each other over S11 interface using GTP protocol (GTP-C). The MME begins procedures for deleting the user’s EPS session and default EPS bearer by sending the S-GW a Delete Session Request message. At this time, the default EPS bearer ID and UE location information (ECGI, TAI) are delivered.



5) [MME] Deleting EPS Bearer Context

The MME deletes the user’s EPS bearer context after sending the Delete Session Request message.



6) [S-GW → P-GW] Requesting EPS Session Release

The S-GW and the P-GW communicate with each other over S5 interface using GTP protocol (UP: GTP-U, CP: GTP-C). The S-GW forwards the Delete Session Request message received from the MME to the P-GW.



7) [S-GW] Deleting EPS Bearer Context

The S-GW deletes the user’s EPS bearer context after sending the Delete Session Request message.



8) [P-GW → PCRF] Notifying of EPS Session Termination

The P-GW and the PCRF communicate with each other over Gx interface using Diameter protocol. The P-GW sends PCRF a CCR (CC-Request) message to notify the user has finished using services through the network. This way it has the EPS session termination procedures (PCEF-initiated EPS Session Termination) initiated.



9) [PCRF] Deleting RCC Rule

The PCRF deletes the user’s PCC rule once it receives the CCR message from the P-GW.



10) [P-GW ← PCRF] Acknowledging EPS Session Termination

The PCRF acknowledges the user’s PCC rule has been deleted by sending a CCA (CC-Answer) message to the P-GW.



11) [S-GW ← P-GW] Responding to EPS Session Release Request

When the P-GW receives the CCA message from the PCRF, it sends the S-GW a Delete Session Response message as a response to the message sent in Step 6) above.



12) [P-GW] Deleting EPS Bearer Context

The P-GW deletes the user’s EPS bearer context after sending the Delete Session Response message.



13) [MME ← S-GW] Responding to EPS Session Release Request

When the S-GW receives the Delete Session Response message from the P-GW, it sends the MME a Delete Session Response message as a response to the message sent in Step 4) above.



14) [UE ← MME] Acknowledging Detach

Upon receipt of the Delete Session Response message, the MME recognizes the user’s resource release has been approved by the PCRF. So, it sends the UE a Detach Accept message as a response to the request sent in Step 1). A Detach Accept message is sent only when the UE’s detach request was made due to a cause other than a switched off device (i.e. when Switch Off=0 in the Detach Request). If detach was requested because of a device’s switch off, no Detach Accept message is sent by MME.



(2) S1 Signaling Connection Release

After sending the Detach Accept message to the UE, the MME and the eNB release any resources left for the user (S1 signaling connection, RRC connection and UE Context left in the eNB) as they do not serve the UE any more.



15) [eNB ← MME] Acknowledging S1 Signaling Connection Release

The MME sends a UE Context Release Command message to the eNB to release the S1 signaling connection.



16) [UE ← eNB] RRC Connection Release

The eNB sends an RRC Connection Release message to the UE to release any RRC connection left unleased.



17) [eNB] Deleting UE Context

The eNB deletes all the information related to the UE.



18) [eNB → MME] RRC Connection Release Complete

Finally, the eNB sends the MME a UE Context Release Complete message as a response to the request sent in Step 15).



IV. MME-initiated Detach



Figure 3 displays how MME-initiated explicit detach is performed. The detach procedure for this type of detach begins when detach triggering is detected at MME, and thus the MME sends a Detach Request message to the UE. The procedure ends when the resources previously allocated to the UE’s EPS session are released.





Figure 3. Procedure for MME-initiated Detach



 Detach Triggering by MME

Below is a description of the procedures to be performed after MME detects detach triggering, and before the EPS session termination procedure is carried out. If the user is in Idle state at this time, the MME performs paging to establish S1 signaling connection (Detailed paging procedures will be explored in our technical document “EMM Procedure 4. Service Request due to New Traffic”, and hence will not be discussed here).



1) [UE ← MME] Detach Request

As it is explicit detach, the MME sends a Detach Request message to request the UE for detach. Message parameters are as follows in case a detach request is sent by MME to UE:





In case of implicit detach, however, MME does not send a Detach Request message to UE.



2) [MME] Handling Security Context

After sending the Detach Request message to the UE, the MME stores the current NAS security context in use before deleting the EPS session. Next time the UE re-attaches, the MME can use the stored context again and skip the authentication and NAS security setup procedures for the user.



3) [UE] Noticing Detach Intent and Handling Security and Bearer Contexts

After receiving the Detach Request message from the MME, the UE becomes aware of the MME’s intent to detach. It checks the type of the intended detach to see whether or not re-attach is required after detach. Then it stores the current NAS security context and deletes the EPS bearer context.



 EPS Session Termination

Once the MME stored the NAS security context upon perceiving detach triggering, it requests the P-GW for termination of the user’s EPS session. This request triggers PCEF (P-GW)-initiated EPS termination, releasing all the network/radio resources allocated to the user, as to be described below.



(1) EPS Bearer Release and PCC Rule Removal

Through Steps 4) ~ 13), the MME requests for termination of the user’s EPS session, the PCRF deletes PCC rule upon the request, and S5 bearer resources are released, as in Steps 4) ~ 13) in Chapter III. In case of a detach type that requires re-attach, the MME can save the current UE-AMBR value in Step 5) so that the UE can establish an EPS bearer faster next time it re-attaches.



4) [UE → MME] Acknowledging Detach

After storing the NAS security context and deleting the EPS bearer context upon receipt of the Detach Request message from the MME in Step 1), the UE sends the a Detach Accept message as a response to the request in Step 1). In case of implicit detach, Steps 1), 14) and 16) are skipped.



(2) S1 Signaling Connection Release

In this phase, the MME releases any unreleased resources (S1 signaling connection, RRC connection and UE context left in the eNB) after receiving the Detach Accept message from the UE and the Delete Session Response message from the S-GW. Steps in this phase are the same as Steps 15) ~ 18) in Chapter III, except that in case the detach type is set as “re-attach required”, UE re-attaches the network after RRC connection is released.



V. HSS-initiated Detach



Figure 4 provides an illustration of how HSS initiates detach after detecting detach triggering.







Figure 4. Procedure for HSS-initiated Detach



 Detach Triggering by HSS

When detach is triggered at HSS due to subscriber withdrawal, the HSS attempts to delete the user’s MM context and EPS bearer immediately.



1) [MME ← HSS] Detach Request

The HSS and the MME communicate with each other over S6a interface using Diameter protocol. The HSS requests the MME for detach of the user by sending a Cancel Location Request (CLR) message with the following parameters:





 EPS Session Termination

Upon receipt of the Cancel Location Request (CLR) message from the HSS, the MME releases all the resources previously allocated to the user. Steps for such procedure are the same as in MME-initiated detach (Figure 3) described in Chapter III, except that an additional action is required by the MME in Step 2). The MME needs to send the HSS a Cancel Location Answer message as a response to the request made in Step 1).



2) [MME → HSS] Responding to Detach Request

After receiving the Detach Accept message from the UE, and the Delete Session Response message from the S-GW, the MME sends a Cancel Location Answer message to the HSS as a response to the Cancel Location Request message sent in Step 1).



VI. EPS Entity Information: Before/After Detach



This chapter explains how information in EPS entities is changed after “EMM Case 2: Detach” procedures are performed. All the information in each entity is categorized into UE ID, UE Location, Security and EPS Session/Bearer information (see [2] for more information).



6.1 Before Detach



According to the EMM Case 2 scenario, a user stays in ECM/RRC-Connected state before he detaches or is detached from the network. Therefore, before detach, all the EPS entities have the same information they initially had after initial attach in EMM Case 1 (see [2] for more information). Figure 5 lists the information stored in each EPS entity before detach is performed.





Figure 5. Information in EPS Entities before Detach



6.2 After Detach



After detach, information that can be used for the user’s fast and secured attach next time is stored in UE and MME. All other contexts related to the user, such as NAS security context, GUTI and TAI information allocated by MME, etc., are deleted. Figure 6 lists the information elements stored in each EPS entity after “EMM Case 2: Detach” procedures. Ones that are to be deleted after detach are shown in gray, provisioned ones that are to be kept are in black, and ones to be used in next attach are in blue.





Figure 6. Information in EPS entities after Detach



Information elements kept for next attach are stored as follows:



At UE:

  • UE ID: GUTI allocated by MME at the time of initial attach or TA updates
  • UE Location: The last TA that UE visited before detach
  • Security: NAS security context information that UE used before detach

At MME:

  • UE ID: IMSI that UE provided at its initial attach, and GUTI allocated by MME at the time of UE’s initial attach or TA updates
  • UE Location: The last TA that UE visited before detach. The TAI list allocated to UE may be kept as well.
  • Security: NAS security context information that UE used before detach
  • EPS Session/Bearer: Subscribed profile received from HSS at the time of UE location registration. The UE-AMBR value determined by MME at the times of EPS bearer establishment, and the APN-AMBR value used in UE-AMBR may be kept as well.

At HSS:

  • UE Location: The last MME UE was registered at before detach



VII. Closing



We have learned how a user, while connected to the LTE network, detaches/is detached from the LTE network (“EMM Case 2” in [1]). We categorized detach cases depending on the entity that detects detach triggering, and looked into the detach procedures in each case. We also checked, after detach, what kinds of information elements are stored at UE, MME and HSS for later use at next attach. The subsequent document will discuss how S1 resource is released when a user, after initial attach, stays inactive for a certain period of time (“EMM Case 3. S1 Release due to User Inactivity” in [1]).



References



[1] Netmanias Technical Document, “Eleven EMM Cases in an EMM Scenario”, October 2013.

[2] Netmanias Technical Document, “LTE EMM Procedure 1. Initial Attach – Part 2. Call Flow of Initial Attach”, January 2014.

[3] NMC Consulting Group Confidential Internal Report, “E2E LTE Network Design”, August 2010
